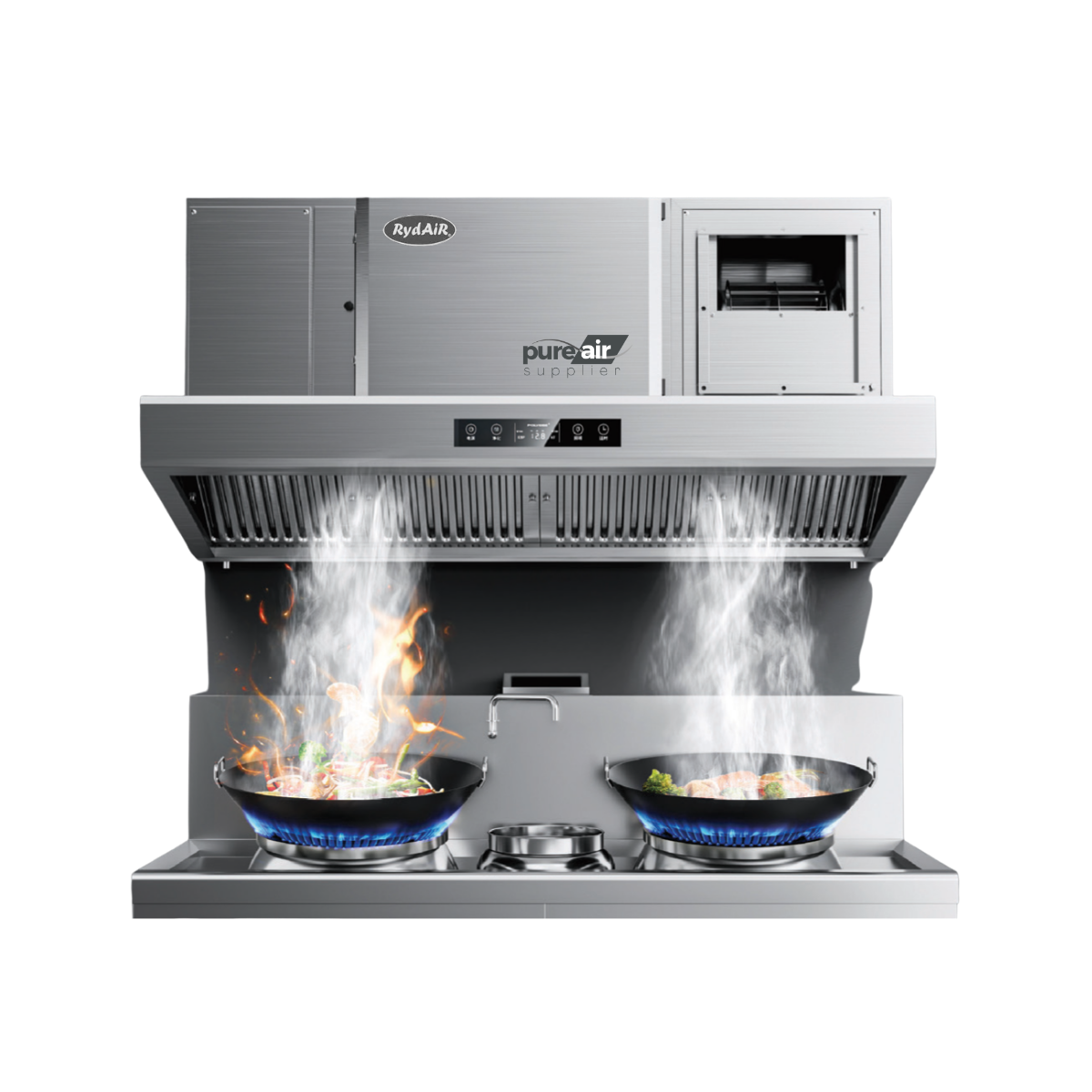

RY Integrated ESP in Commercial Kitchen Hood
DESCRIPTION
RY (ESP) Intagrated into a commercial Kitchen Hood

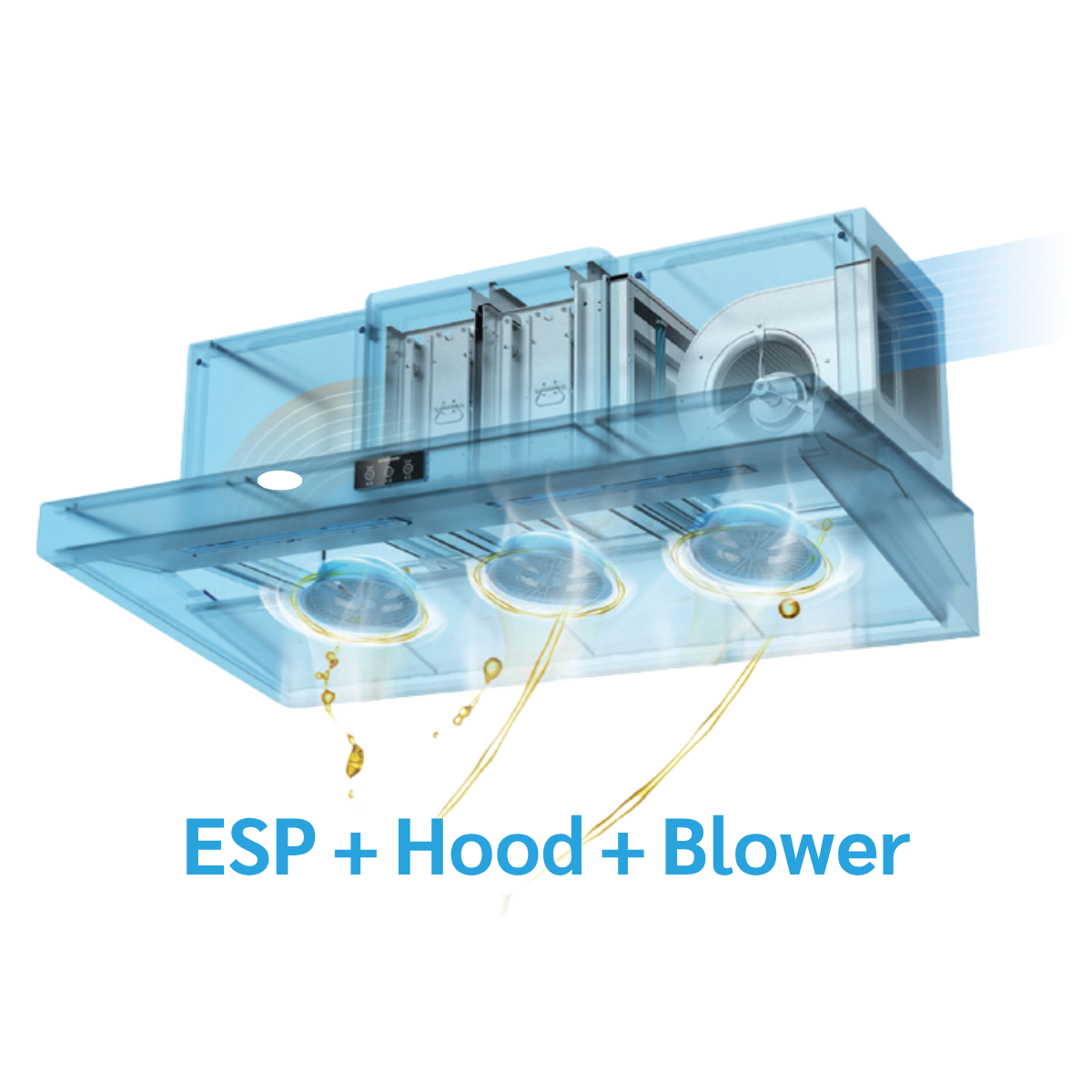

The RC Series combines capture, filtration, and purification in one integrated unit, eliminating the need for separate systems and simplifying installation. Its scalable design allows for multiple units to be installed in parallel, powered by an external extractor, to accommodate both compact kitchens and high-volume operations. With top, front, and rear discharge options, as well as airflow capacities of 3,200 and 4,800 m³/h in single- and three-phase configurations, the RC Series provides a tailored solution for any setup. The combination of ESP technology, UV lamps, and stainless steel construction ensures reliable performance while supporting compliance and improving the working environment for kitchen staff.
The RC Series combines capture, filtration, and purification in one integrated unit, eliminating the need for separate systems and simplifying installation. Its scalable design allows for multiple units to be installed in parallel, powered by an external extractor, to accommodate both compact kitchens and high-volume operations. With top, front, and rear discharge options, as well as airflow capacities of 3,200 and 4,800 m³/h in single- and three-phase configurations, the RC Series provides a tailored solution for any setup. The combination of ESP technology, UV lamps, and stainless steel construction ensures reliable performance while supporting compliance and improving the working environment for kitchen staff.
SPECIFICATIONS
| Available models: | RC3200 / RC3201 (3,200 m³/h) and RC4800 / RC4801 (4,800 m³/h) |
| Cleaning efficiency | ≥ 95% |
| Oil mist concentration at outlet: | ≤ 1.0 mg/m³ |
| Material: | SUS201 stainless steel |
| UV lamps: | Included |
| Installation options: | With or without blower; top, front, or rear discharge |
| Nominal Airflow: | 3,200 m³/h and 4,800 m³/h depending on the model |
| Maximum Inlet Oil Mist Concentration: | 20 mg/m³ |
| Power Supply: | Single-phase (220 V / 50-60 Hz) and three-phase (380 V / 50-60 Hz) configurations available depending on the model |
| Electrostatic Cell Consumption: | High voltage regulated for ionization and contaminant capture |
| Fan Configuration: | Available with a fan sized for duct connection or an external extraction system, or without a fan for custom installations |
| Discharge Options: | Top, front, or rear |
| Parallel Installation | Allows for the assembly of multiple units driven by an external extractor for high-volume operations |
| Recommended Operating Conditions: | Suitable for commercial kitchen environments with high loads of grease, smoke, and steam |
| Maintenance: | Removable and washable collector cells for simple periodic cleaning |
| Ductwork Connection: | Compatible with existing extraction and ventilation systems |
Categories: Commercial Kitchen Exhaust, Residential Solutions
Brand: Rydair
