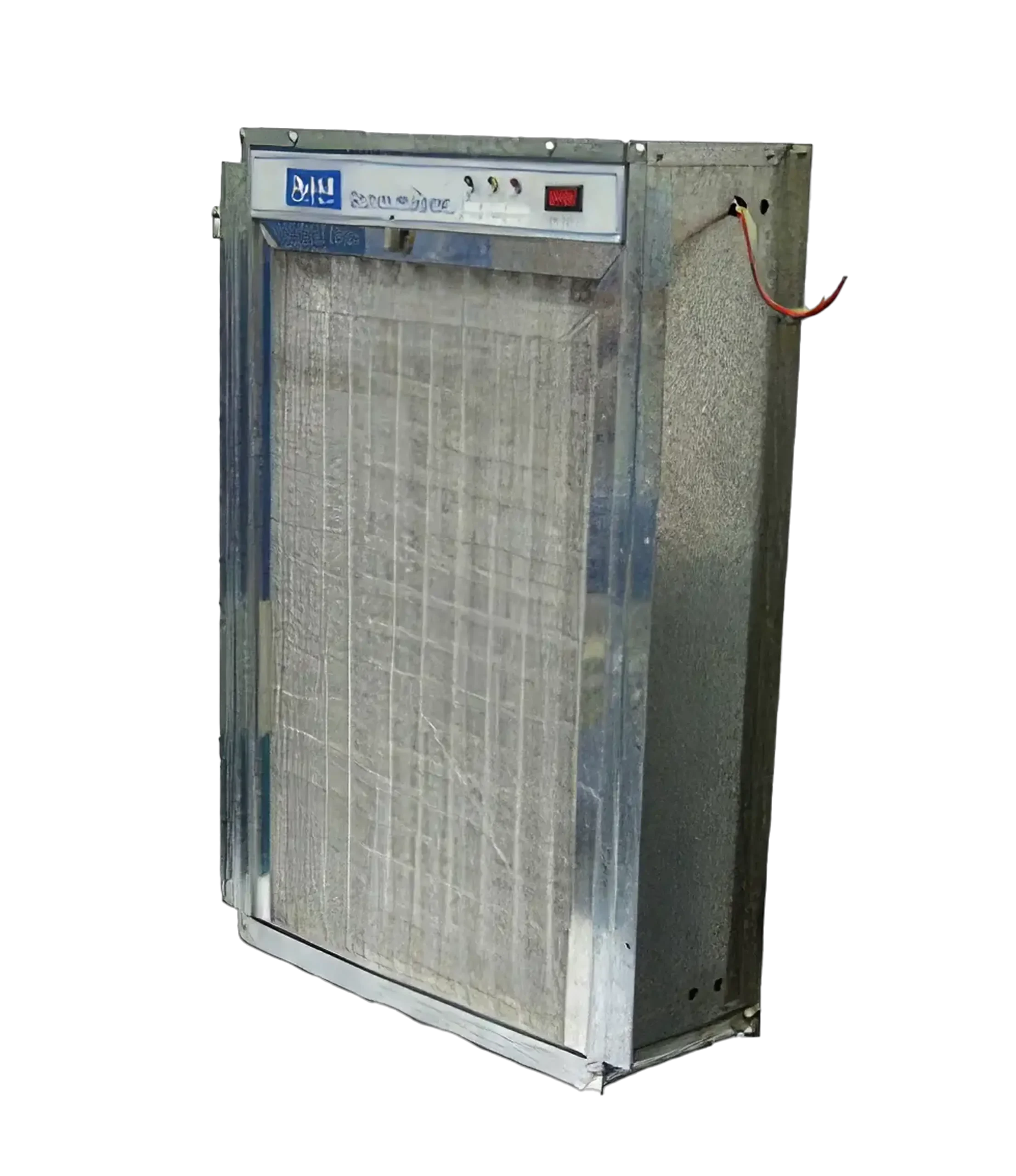

DM 1000 B Rydair
DESCRIPTION
The RydAiR Modular Electronic Air Cleaner (EAC), DM 1000B is a commercial unit designed for use in Custom Air Handling System / Air Handling Units. It is a fact that “Sick Building Syndrome” exists in system is a major step towards improving the quality of indoor air. This in turn creates a healthy work environment for employees, reduces the spread of infectious ailments resulting in less sick leave and increased productivity. The DM 1000B reduces the amount of airborne particulates from soiling the AHU’s cooling coils and when in place of mechanical result of lower pressure drop of the EAC compared to these conventional.
SPECIFICATIONS

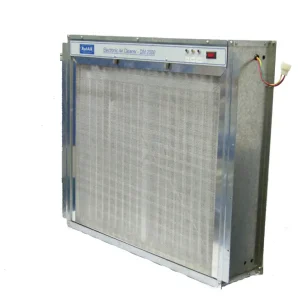

| Air Handling Capacity | 3400 CMH ( DM2000B ) |
| 1700 CMH ( DMIOOOB ) | |
| Power Consumption | 36 Watts ( DM2000B ) |
| 30 Watts ( DMI 000B ) | |
| Voltage & Frequency | 220/240 VAC 50/60Hz |
| Ionizing Voltage | 8.1 KVDC |
| Collectior Voltage | 4.1 KVDC |
| No. of collection cells | 2 ( DM2000B)1 ( DMIOOOB) |
| Cell dimensions | 500mm x 315mm x 110mm |
| No. of plates per cell | 71 |
| No. of Ionizing wires per cell | 9 |
| Cell weight (each) | 4.6kg |
| Cell material | Aluminum |
| Efficiency | MERV 14 – ASHRAE 52.2-2017 |
| Pressure drop | 0.11 ” WG-O.25″ WG ( 28Pa to 66Pa ) |
| Operating temperature | 40C to 550C |
| Building Management System | Yes |
| Status & Performance | On, Wash, Check signal Indicator |
| Power supply protection | Shuts down high tension |
| (Anti arc suppression) | output when short circuit occurs |
| Safety features | Safety cut of switch |
| Accessories | Pre-filters & cells |
| Option | Charcoal after filter for odor reduction |
| Cell Loading | Front Loaded |
| Housing material | 1.2mm Hot dip |
| Galvanized steel | |
| Mounting / Installation | Air return of AHU/Fresh air inlet |
| Unit Dimension | DM2000B: 65mrn |
| DMIOOOB | |
| Unit Weight | DM2000B – 18.5 Kg |
| DMIOOOB – 9.8 Kg |
