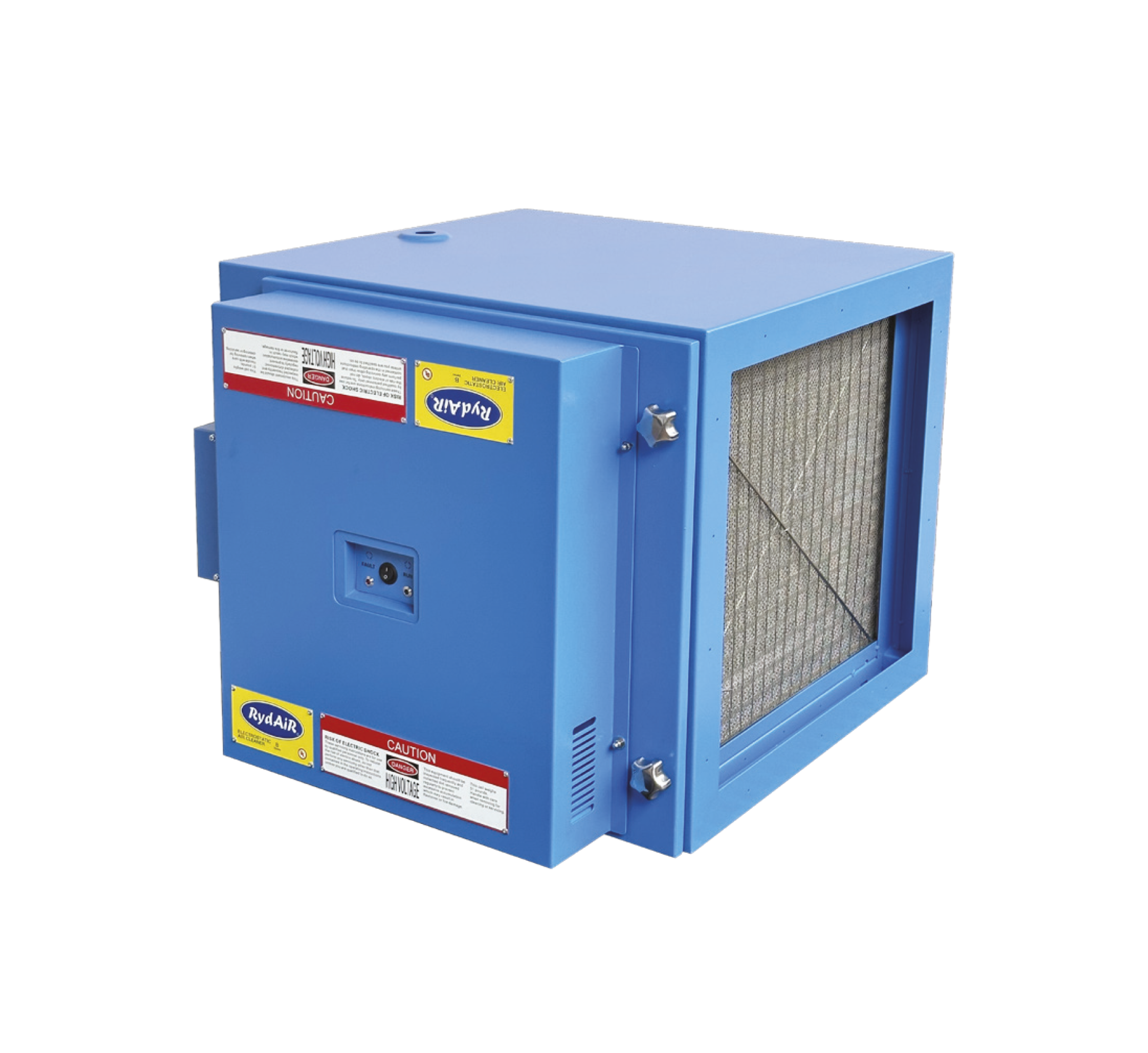

RY 2500BX UL

RY 2500BX UL


DESCRIPTION
Electrostatic Air Cleaner (Without Blower)
Industrial grade Electrostatic Air Cleaners for collection of dry and wet particulates like dust, oil mist, cooking fumes and various pollutants. Typical application include commercial kitchen exhausts, Air Handling Units (AHUs), factories, workshops, CNC machine shops and many other premises.

SPECIFICATIONS

Dimensions/Weight H: 540 x W: 694 x L: 620 mm / 62Kg
Cabinet Electro Galvanized Steel 1.4mm 16 Gauge
Finishing Powder Coated, Dark Blue
Air Volume (Rated-Max)# 2500-4600CMH(Max) / 1500-2700Cfm(Max)
Static Pressure 50Pa-115Pa (Max Capacity)
Voltage & Power 230 VAC +/-10% , 50/60Hz, 50Watts
lonising Voltages High Voltage: 12KVdc, Low Voltage: 6KVdc
Air Flow Direction Default : Right to Left; Reversible: Left to Right
Power Supply Digital Power Supply, pulse wave modulation (PWM) High Frequency solid state and self regulating design
Features
  • LCD display on power supply showing operations and error messages on the unit.
  • Short circuit, arc protection and auto restore power supply.
  • BMS (Building Management System) terminals provided.
  • Auto power cut-off when door is opened
  • Indicator LEDs for normal or wash indicator.
  • Set of Terminals for remote LED normal or wash indicator.
Particle size From 0.01 microns 10 microns
Efficiency DOP Test, up to 95% single pass, up to 99% double pass, calculated. ASHRAE 52.2-2012, up to 96% single pass, up to 99% double pass, calculated. NIOSH 5026 OIL MIST FIELD TEST : UP TO 96%
MERV Ratings Meets MERV 14 at velocity of 3.81m/s, 750fpm
Pre-Filter Stainless Steel Wire Mesh, Washable X 1
Electrostatic Cell H: 472mm, W: 550mm, L: 340mm
No of Cells / Weight 16.5Kg
No Of Plates per Cell 59
Total Collecting Area 6.07 Sq meters
Post Filter (Optional) Stainless Steel Wire Mesh, Washable X 1
Installation Ceiling Suspended; Wall or Frame Mounted, Multiple Units Stack
