he RydAiR BX Series (formerly B Series) is a UL-listed (E532141) Electrostatic Air Cleaner designed to help businesses effectively control pollutants and improve air quality. Ideal for factories, restaurants, workshops, and commercial exhaust systems, it captures dry and wet particulates, including dust, oil mist, cooking fumes, and welding smoke.
With low static pressure loss and washable filters, the BX Series supports Green Building initiatives by improving energy efficiency and reducing environmental impact. Meeting MERV 14 standards, these high-efficiency units provide a low-maintenance, cost-effective solution for cleaner air in densely populated urban areas and industrial settings.
(678) 908-4777
RydAiR’s Electrostatic Air Cleaners (EACs) effectively capture both wet and dry particulates, including dust, oil mist, cooking fumes, and welding smoke, making them an efficient, low-maintenance air purification solution. These systems can be easily integrated into exhaust setups for kitchens, factories, and workshops, ensuring cleaner air and regulatory compliance.
For odor control, we recommend adding an Activated Carbon Bank to remove gas and vapor contaminants. Alternatively, UV Ozone Lamps can be used when space is limited, though excess ozone should be carefully managed to prevent indoor exposure.
While EACs remove dust, bacteria, and allergens, mold and microbial growth can still develop in HVAC components. Installing UVC Lamps in Air Handling Units (AHUs) helps eliminate these harmful organisms, improving air quality, system efficiency, and HVAC lifespan by keeping coils and duct surfaces clean.
RydAiR solutions are highly versatile, functioning as standalone units or integrated into ducting and exhaust systems. Ideal for use in:
✅ Restaurants & F&B Outlets 🍽️
✅ Commercial Buildings & Offices 🏢
✅ Hotels & Hospitality 🏨
✅ Schools & Educational Institutions 🎓
✅ Medical Facilities & Hospitals 🏥
Our advanced air purification technology ensures cleaner, healthier environments for both businesses and public spaces

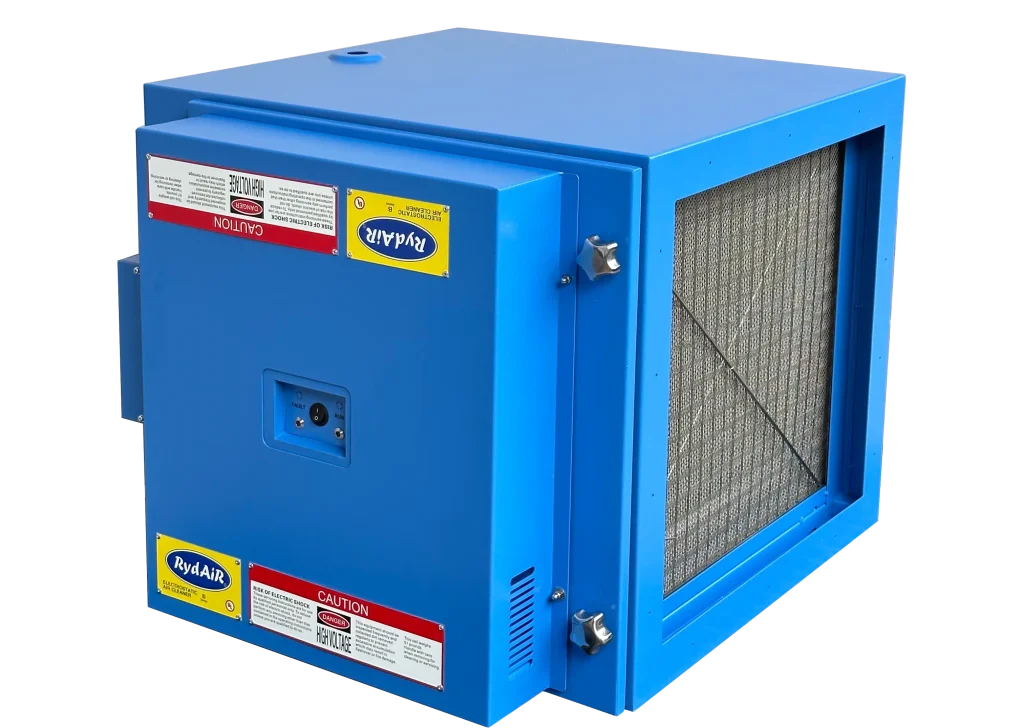

The RY 2500BX is a UL-listed industrial-grade Electrostatic Air Cleaner (Electrostatic Precipitator) designed for the efficient removal of both wet and dry particulates, including dust, oil mist, cooking fumes, welding smoke, and other airborne pollutants.
Ideal for commercial and industrial applications, this high-performance unit helps maintain cleaner exhaust air, improving air quality in environments such as:
✅ Commercial kitchen exhausts 🍽️
✅ Air Handling Units (AHUs) 🌬️
✅ Factories & workshops 🏭
✅ CNC machine shops ⚙️
Built for energy efficiency and long-term performance, the RY 2500BX integrates seamlessly into various exhaust and ventilation systems, providing low-maintenance, cost-effective air purification for demanding environments.
| Dimensions H x W x L (mm) | 540 x 694 x 620 |
| Weight (kg) | 62 |
| Cabinet | Galvanized Steel, 1.4mm / 16 Guage |
| Finishing | Powder Coated, Dark Blue |
| Air Volume (Rated-Max)# | 2500-4600 CMH |
| Pressure Drop | 0.13” (33pa) – 0.46”(115pa) |
| Voltage | 230 VAC +/- 10%, 50/60Hz |
| Power Consumption | 55 watts |
| Ionising Voltages | High Voltage: 12-13KVDC; Low Voltage 6-7 KVDC |
| Air Flow Direction | Default : Right to Left; Reversible Left to Right on request |
| Power Supply | Digital Power Supply, pulse wave modulating PWM High Frequency Solid State & Self Regulating Design. LED readout |
| Particle Size | From 0.01 microns to 100 microns |
| Efficiency | DOP Test, up to 95% on Single Pass and 99% on Double Pass. ASHRAE Std 52.2-2012, up to 96% on Single Pass and up to 99% on Double Pass. # Running at Max capacity will result in drop of efficiency to 85% |
| MERV rating | Meets MERV 15 at velocity of 2.5m/sec to 3.8m/sec. |
| Stainless Steel Mesh Filter | 1 |
| Electrostatic Cell Size (mm) | H 472 x W 550 x L 340 |
| No. of cells / Weight | 1 / 16.5 kg |

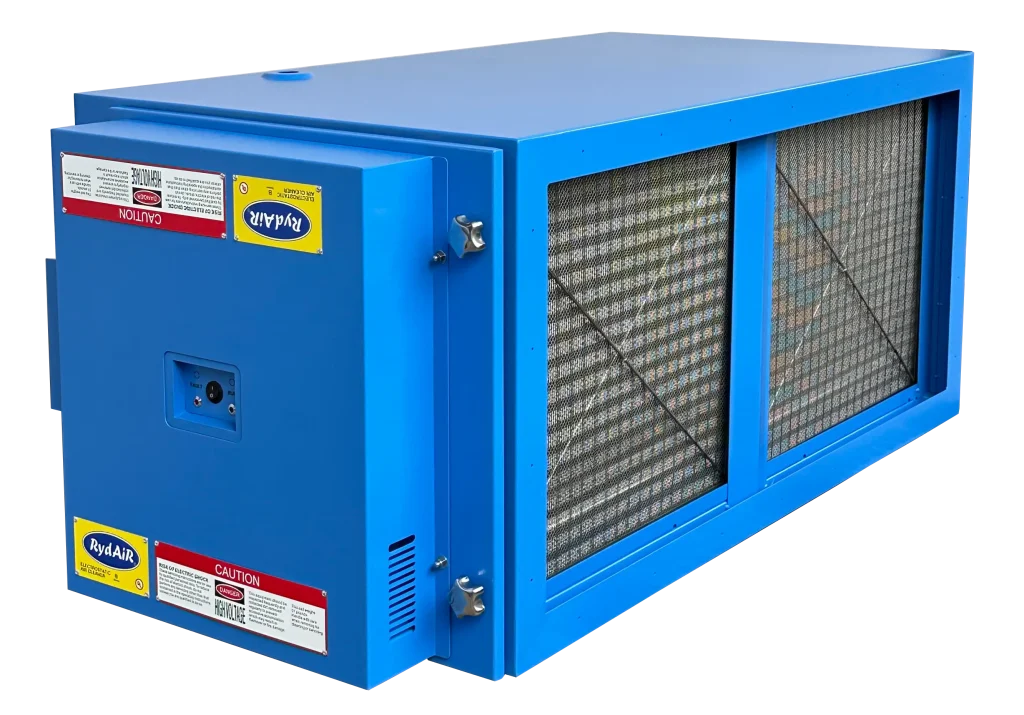

The RY 5000BX is a high-capacity, UL-listed Electrostatic Air Cleaner (Electrostatic Precipitator) designed for the efficient removal of both wet and dry particulates, including dust, oil mist, cooking fumes, welding smoke, and other airborne pollutants. This industrial-grade air purification system helps businesses maintain cleaner exhaust emissions while complying with environmental regulations.
✔️ Commercial kitchen exhausts – Reduces grease, smoke, and odors for cleaner air.
✔️ Air Handling Units (AHUs) – Enhances indoor air quality and extends HVAC lifespan.
✔️ Factories & workshops – Captures industrial pollutants for a safer workspace.
✔️ CNC machine shops – Removes oil mist and fine particulates, improving air cleanliness.
| Dimensions H x W x L (mm) | 540 x 1243 x 620 |
| Weight (kg) | 98 |
| Cabinet | Galvanized Steel, 1.4mm / 16 Guage |
| Finishing | Powder Coated, Dark Blue |
| Air Volume (Rated-Max)# | 5000-9200 CMH |
| Pressure Drop | 0.13” (33pa) – 0.46”(115pa) |
| Voltage | 230 VAC +/- 10%, 50/60Hz |
| Power Consumption | 95 watts |
| Ionising Voltages | High Voltage: 12-13KVDC; Low Voltage 6-7 KVDC |
| Air Flow Direction | Default : Right to Left; Reversible Left to Right on request |
| Power Supply | Digital Power Supply, pulse wave modulating PWM High Frequency Solid State & Self Regulating Design. LED readout |
| Particle Size | From 0.01 microns to 100 microns |
| Efficiency | DOP Test, up to 95% on Single Pass and 99% on Double Pass. ASHRAE Std 52.2-2012, up to 96% on Single Pass and up to 99% on Double Pass. # Running at Max capacity will result in drop of efficiency to 85% |
| MERV rating | Meets MERV 15 at velocity of 2.5m/sec to 3.8m/sec. |
| Stainless Steel Mesh Filter | 1 |
| Electrostatic Cell Size (mm) | H 472 x W 550 x L 340 |
| No. of cells / Weight | 1 / 16.5 kg |

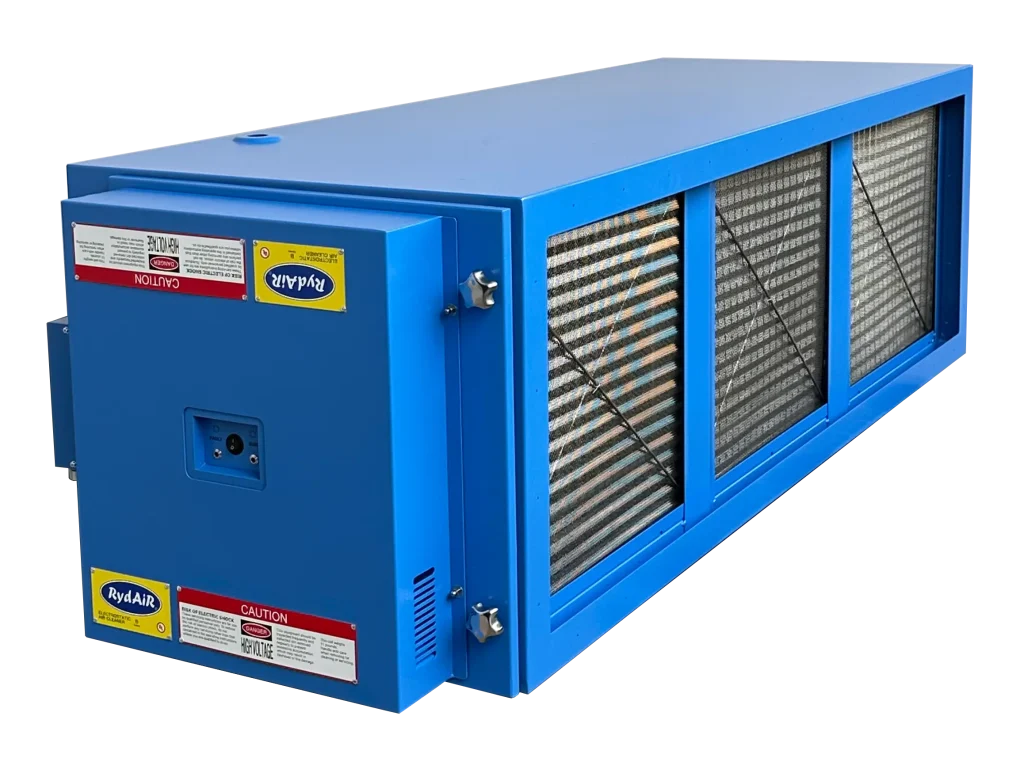

The RY 7500BX is a high-capacity, UL-listed Electrostatic Air Cleaner (Electrostatic Precipitator) designed for the efficient removal of both wet and dry particulates, including dust, oil mist, cooking fumes, and industrial pollutants. Engineered for commercial and industrial applications, it ensures cleaner exhaust air, improved indoor air quality, and compliance with environmental and workplace safety standards.
✔️ Commercial kitchen exhausts – Removes grease, smoke, and airborne contaminants.
✔️ Air Handling Units (AHUs) – Improves HVAC efficiency and indoor air quality.
✔️ Factories & workshops – Captures fine particulates and industrial emissions.
✔️ CNC machine shops – Controls oil mist and machining byproducts for cleaner air.
For enhanced odor control, the RY 7500BX can be fitted with a UV Ozone Lamp to neutralize airborne odors and volatile organic compounds (VOCs).
✔️ Dual 90W UV Lamps – Total 180W power for effective ozone generation.
✔️ Ozone Output: 16 Grams/Hour – Breaks down odor-causing molecules.
✔️ Long Lamp Life: 13,000 Hours – Durable, long-lasting operation.
✔️ Blue LED Indicators – Monitors lamp function on the unit’s panel.
✔️ All Accessories Included – Fully integrated within the RY unit for seamless performance.
🔹 High-Efficiency Filtration – Effectively captures pollutants at the source.
🔹 Energy-Efficient Operation – Low static pressure drop for optimal airflow.
🔹 Modular & Scalable Design – Easily integrates into existing exhaust and ducting systems.
🔹 Low Maintenance – Washable collector plates for cost-effective operation.
.
The RY 7500BX is a powerful, energy-efficient solution for businesses looking to eliminate airborne contaminants, enhance air quality, and maintain a healthier, cleaner environment. 🌍✨
| Dimensions H x W x L (mm) | 540 x 1790 x 620 |
| Weight (kg) | 132 |
| Cabinet | Galvanized Steel, 1.4mm / 16 Guage |
| Finishing | Powder Coated, Dark Blue |
| Air Volume (Rated-Max)# | 7500-13800 CMH |
| Pressure Drop | 0.13” (33pa) – 0.46”(115pa) |
| Voltage | 230 VAC +/- 10%, 50/60Hz |
| Power Consumption | 135 watts |
| Ionising Voltages | High Voltage: 12-13KVDC; Low Voltage 6-7 KVDC |
| Air Flow Direction | Default : Right to Left; Reversible Left to Right on request |
| Power Supply | Digital Power Supply, pulse wave modulating PWM High Frequency Solid State & Self Regulating Design. LED readout |
| Particle Size | From 0.01 microns to 100 microns |
| Efficiency | DOP Test, up to 95% on Single Pass and 99% on Double Pass. ASHRAE Std 52.2-2012, up to 96% on Single Pass and up to 99% on Double Pass. # Running at Max capacity will result in drop of efficiency to 85% |
| MERV rating | Meets MERV 15 at velocity of 2.5m/sec to 3.8m/sec. |
| Stainless Steel Mesh Filter | 1 |
| Electrostatic Cell Size (mm) | H 472 x W 550 x L 340 |
| No. of cells / Weight | 1 / 16.5 kg |

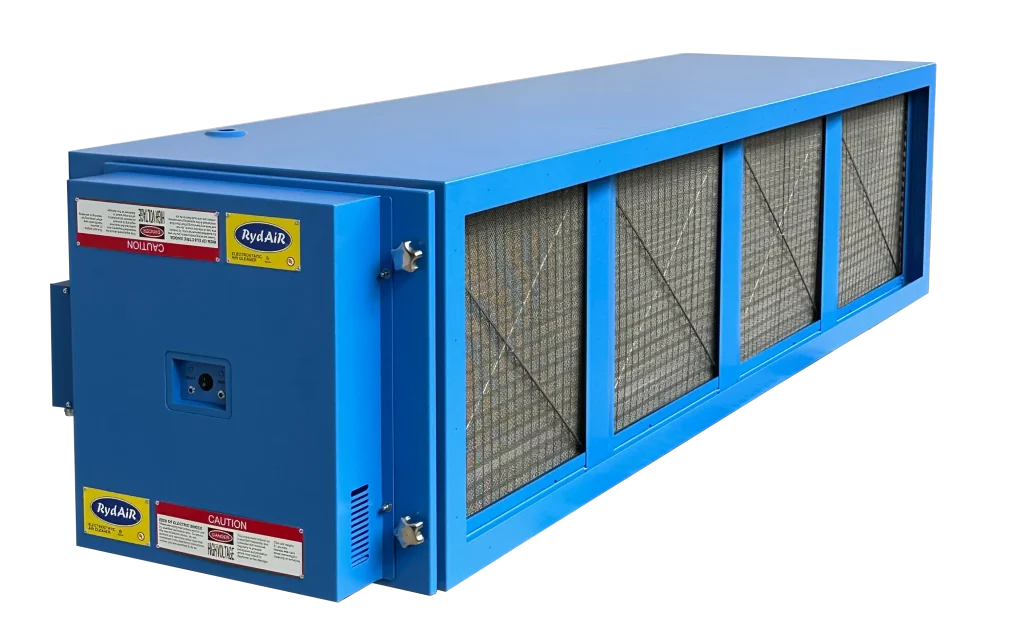

The RY 10000BX is a heavy-duty, UL-listed Electrostatic Air Cleaner (Electrostatic Precipitator) designed for high-volume air purification in commercial and industrial environments. Engineered to efficiently capture both wet and dry particulates, including dust, oil mist, cooking fumes, welding smoke, and other airborne pollutants, it ensures cleaner air, reduced emissions, and compliance with environmental standards.
✔️ Commercial kitchen exhausts – Removes grease, smoke, and odors for improved air quality.
✔️ Air Handling Units (AHUs) – Enhances HVAC performance while reducing maintenance.
✔️ Factories & workshops – Captures industrial pollutants for a safer work environment.
✔️ CNC machine shops – Controls oil mist and fine particulates, preventing contamination.
🔹 High-Efficiency Filtration – Captures pollutants at the source, improving workplace safety.
🔹 Energy-Saving Design – Low static pressure drop for optimal airflow and efficiency.
🔹 Modular & Scalable – Easily integrates into existing exhaust and ducting systems.
🔹 Low Maintenance – Washable collector plates for long-term cost-effectiveness.
🔹 UL Listed for Safety & Performance – Meets industry standards for air purification.
The RY 10000BX is the ultimate solution for businesses looking to improve air quality, maintain compliance, and create a healthier indoor environment with efficient, high-capacity air filtration. 🌍✨
| Dimensions H x W x L (mm) | 540 x 2338 x 620 |
| Weight (kg) | 165 |
| Cabinet | Galvanized Steel, 1.4mm / 16 Guage |
| Finishing | Powder Coated, Dark Blue |
| Air Volume (Rated-Max)# | 10,000- 18400 CMH |
| Pressure Drop | 0.13” (33pa) – 0.46”(115pa) |
| Voltage | 230 VAC +/- 10%, 50/60Hz |
| Power Consumption | 160 watts |
| Ionising Voltages | High Voltage: 12-13KVDC; Low Voltage 6-7 KVDC |
| Air Flow Direction | Default : Right to Left; Reversible Left to Right on request |
| Power Supply | Digital Power Supply, pulse wave modulating PWM High Frequency Solid State & Self Regulating Design. LED readout |
| Particle Size | From 0.01 microns to 100 microns |
| Efficiency | DOP Test, up to 95% on Single Pass and 99% on Double Pass. ASHRAE Std 52.2-2012, up to 96% on Single Pass and up to 99% on Double Pass. # Running at Max capacity will result in drop of efficiency to 85% |
| MERV rating | Meets MERV 15 at velocity of 2.5m/sec to 3.8m/sec. |
| Stainless Steel Mesh Filter | 1 |
| Electrostatic Cell Size (mm) | H 472 x W 550 x L 340 |
| No. of cells / Weight | 1 / 16.5 kg |

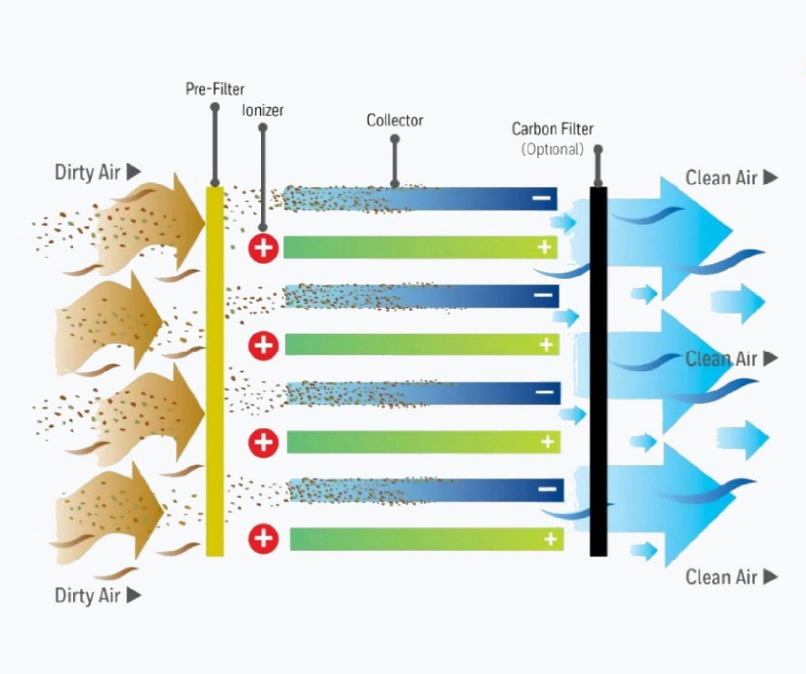

Electrostatic Air Cleaners (Electrostatic Precipitators) efficiently capture wet and dry particulates, including dust, oil mist, cooking fumes, and airborne pollutants. Contaminated air is drawn through a washable metal mesh pre-filter, which traps larger dust particles, while ultrafine particles as small as 0.01 microns pass through an ionizing section, where they receive an electrical charge.
These charged particles then move into a collector plate section consisting of parallel plates—where like-charged plates repel particles, and grounded plates attract and trap contaminants. The accumulated pollutants remain on the plates until they are easily washed away, ensuring continuous and efficient air purification.
Electrostatic air cleaners use an ionization process to charge airborne particles, which are then attracted to collector plates, effectively removing dust, smoke, oil mist, and pollutants from the air.
UVC technology neutralizes bacteria, viruses, and mold by disrupting their DNA, preventing them from reproducing and improving overall indoor air quality.
Yes! Our systems use activated carbon filters, ozone oxidation, and photocatalytic oxidation (PCO) to eliminate unpleasant odors and volatile organic compounds (VOCs) from the air.
Our air purification solutions are ideal for homes, offices, restaurants, medical facilities, factories, and commercial buildings, ensuring cleaner and healthier environments.
Electrostatic air cleaners require regular cleaning of the collector plates every 2 to 4 weeks, while filters and UVC lamps should be checked and replaced as needed for optimal performance.
